PVC Glass Bridges

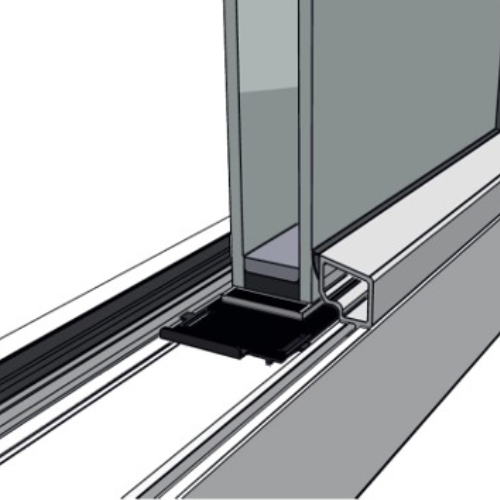

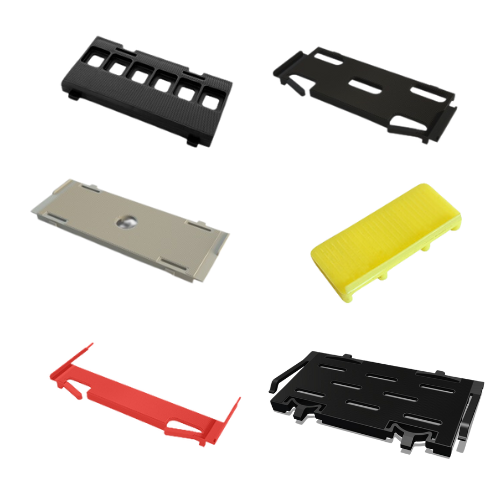

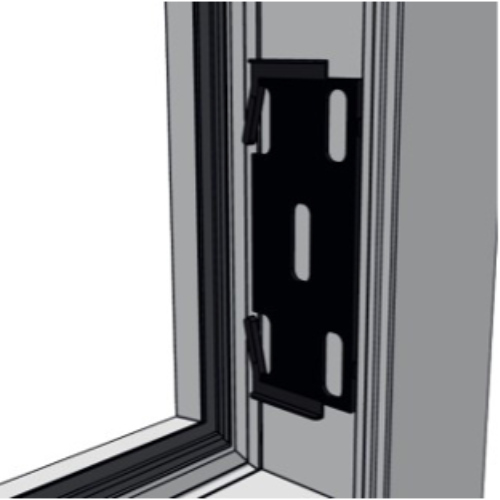

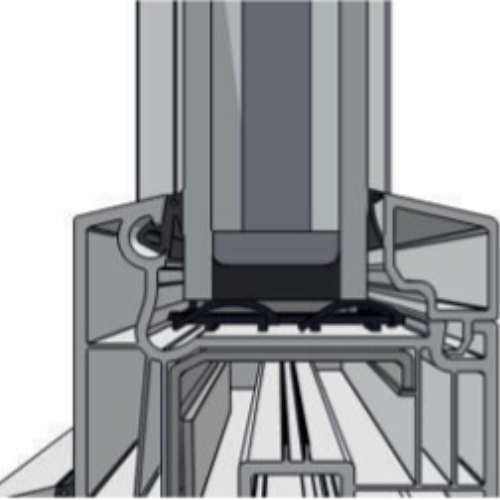

Glass bridges are used to align the drainage holes in PVC window systems. They have longitudinal ribs to ensure a free flow of water under their surface. They also have special latches that permanently mount them in the window profile. Most of our bridges have side limiters to prevent spacers from sliding out, thus reducing the need for using silicone while glazing. They are made of polypropylene or polystyrene.
Description

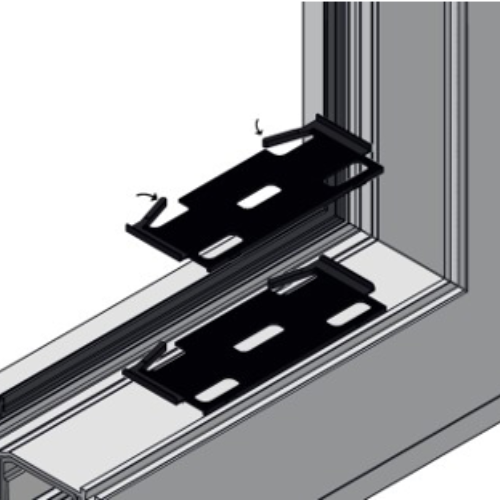

FLEX type bridges are constructed in such a way that they can always be placed properly in the glazing chamber. Thanks to their specific shape they fit to the width of the chamber, eliminating deviations from the assumed dimensions occurring frequently in profiles.
System SMART Meeting the expectations of customers, we have introduced system bridges, which removed the need for using silicone when glazing when using more glass packers. This line is called "Smart". Bridges of this type, thanks to the use of unique solutions of movable side limiters, enable wedging the pane using both one or many glass packers.
OPTIONS:
| Article | Product name | Quantity |
|---|---|---|
| 1201100 | ALUPLAST 2000/7000/8000 | 1000pcs |
| 1201200 | ALUPLAST 4000/5000 | 1000pcs |
| 1201210 | ALUPLAST 4000/5000 flex | 1000pcs |
| 1201225 | ALUPLAST 4000/5000 smart | 500pcs |
| 1201300 | ALUPLAST 5000 frame | 250pcs |
| 1201500 | ALUPLAST 7000 frame | 1000pcs |
| 1201600 | ALUPLAST 7000/8000 MULTIFALZ 650.250 | 1000pcs |
| 1201400 | ALUPLAST 8000 frame | 250pcs |
| 1202100 | ALUPLAST MULTIFALZ 65.251 | 1000pcs |
| 1201800 | ALUPLAST MULTIFALZ 650.252 | 1000pcs |
| 1201900 | ALUPLAST MULTIFALZ 680.250 | 1000pcs |
| 1202305 | ALUPLAST NEO frame 660.301 | 500pcs |
| 1202210 | ALUPLAST 640033 3x30x13 red | 1000pcs |
| 1202220 | ALUPLAST 640034 4x30x13 yellow | 1000pcs |
| 1202230 | ALUPLAST 640035 5x30x13 green | 1000pcs |
| 1204100 | AVANTGARDE 7000 flex | 1000pcs |
| 1206100 | BLUEVOLUTION 73 flex | 1000pcs |
| 1206115 | BLUEVOLUTION 73 + 4mm | 500pcs |
| 1205225 | BLUEVOLUTION 82 frame | 500pcs |
| 1205200 | BLUEVOLUTION 82 flex | 1000pcs |
| 1205215 | BLUEVOLUTION 82 smart | 500pcs |
| 1205105 | BLUEVOLUTION 92 + 3mm flex | 500pcs |
| 1208700 | DECCO 62 | 1000pcs |
| 1208200 | DECCO 71/73 flex | 1000pcs |
| 1208210 | DECCO 71/73 smart | 1000pcs |
| 1208405 | DECCO 83 | 500pcs |
| 1208410 | DECCO 83 smart | 1000pcs |
| 1208300 | DECCO THERMICCO | 1000pcs |
| 1210425 | DECEUNINCK ELEGANT | 500pcs |
| 1210415 | DECEUNINCK ELEGANT frame | 500pcs |
| 1210430 | DECEUNINCK ELEGANT sash 5231 | 1000pcs |
| 1210440 | DECEUNINCK ELEGANT GRANDO | 1000pcs |
| 1210510 | DECEUNINCK ELEGANT THERMOFIBRA frame | 1000pcs |
| 1210500 | DECEUNINCK ELEGANT THERMOFIBRA sash | 1000pcs |
| 1210200 | DECEUNINCK Z3000 | 1000pcs |
| 1212375 | GEALAN LINEAR frame | 500pcs |
| 1212360 | GEALAN LINEAR | 1000pcs |
| 1212100 | GEALAN S3000 | 1000pcs |
| 1212200 | GEALAN S7000/8000 | 1000pcs |
| 1212215 | GEALAN S7000/8000 flex | 500pcs |
| 1212225 | GEALAN s7000/8000 + 4mm | 500pcs |
| 1212235 | GEALAN S8000 IQ STV | 500pcs |
| 1212315 | GEALAN S9000 | 500pcs |
| 1212330 | GEALAN S9000 RED | 1000pcs |
| 1212325 | GEALAN S9000 smart | 500pcs |
| 1214105 | INOUTIC ARCADE GK710 | 500pcs |
| 1214205 | INOUTIC ARCADE GK722 | 500pcs |
| 1214305 | INOUTIC ARCADE GK738 | 500pcs |
| 1214600 | INOUTIC PRESTIGE GK076 | 1000pcs |
| 1214700 | INOUTIC PRESTIGE GK176 | 1000pcs |
| 1214805 | INOUTIC PRESTIGE GK276 | 500pcs |
| 1215100 | INOUTIC PRESTIGE GK376 | 1000pcs |
| 1214405 | INOUTIC EFORTE GK084 | 500pcs |
| 1214905 | INOUTIC EFORTE GK184 | 500pcs |
| 1214505 | INOUTIC EFORTE GK284 | 500pcs |
| 1214900 | INOUTIC GK10/4 | 1000pcs |
| 1215202 | INOUTIC HST GKH276 NR. 15818 | 200pcs |
| 1232405 | KBE/TROCAL/KÖMMERLING 76 frame | 500pcs |
| 1232310 | KBE/TROCAL/KÖMMERLING 76 RED | 1000pcs |
| 1232235 | KBE/TROCAL/KÖMMERLING 76 X-line | 500pcs |
| 1216100 | KBE 58 | 1000pcs |
| 1216200 | KBE 70 | 1000pcs |
| 1216300 | KBE 88 | 1000pcs |
| 1217205 | KBE/TROCAL/KÖMMERLING 88 | 500pcs |
| 1217105 | KBE/TROCAL/KÖMMERLING 88 RED | 500pcs |
| 1217305 | KBE/TROCAL/KÖMMERLING 88 frame | 500pcs |
| 1232405 | KÖMMERLING/KBE/TROCAL 76 frame | 500pcs |
| 1232310 | KÖMMERLING/KBE/TROCAL 76 RED | 1000pcs |
| 1232235 | KÖMMERLING/KBE/TROCAL/ 76 X-line | 500pcs |
| 1218100 | KÖMMERLING ED | 1000pcs |
| 1218200 | KÖMMERLING EF | 500pcs |
| 1218210 | KÖMMERLING EF flex | 1000pcs |
| 1218300 | KÖMMERLING 70/ELEGANCE flex | 1000pcs |
| 1217205 | KÖMMERLING/KBE/TROCAL 88 | 500pcs |
| 1217105 | KÖMMERLING/KBE/TROCAL 88 RED | 500pcs |
| 1217305 | KÖMMERLING/KBE/TROCAL 88 frame | 500pcs |
| 1218400 | KÖMMERLING 88 PLUS | 1000pcs |
| 1218500 | KÖMMERLING 88 PLUS frame | 1000pcs |
| 1224320 | LB CONCEPT | 1000pcs |
| 1220100 | PLUSTEC 3-K | 1000pcs |
| 1232500 | PROFINE 70 flex | 1000pcs |
| 1221100 | REHAU BASIC/ED 60 | 1000pcs |
| 1221200 | REHAU BRILLANT/ED 70 | 1000pcs |
| 1221210 | REHAU BRILLANT/ED 70 flex | 1000pcs |
| 1221225 | REHAU BRILLANT/ED 70 smart | 500pcs |
| 1221230 | REHAU ED 70 Z 54 flex | 1000pcs |
| 1221300 | REHAU GENEO/ED 86 PLUS | 1000pcs |
| 1221445 | REHAU SYNEGO | 500pcs |
| 1221505 | REHAU SYNEGO frame | 500pcs |
| 1221420 | REHAU SYNEGO RED | 1000pcs |
| 1223100 | SALAMANDER 2D | 1000pcs |
| 1223205 | SALAMANDER 3D/SL | 500pcs |
| 1223525 | SALAMANDER GREENEVOLTION 76 Flex | 500pcs |
| 1223515 | SALAMANDER GREENEVOLTION 76 BOX | 500pcs |
| 1223605 | SALAMANDER PROEVOLUTION 72 Smart | 500pcs |
| 1224100 | SCHÜCO CORONA AS60 | 1000pcs |
| 1224200 | SCHÜCO CORONA CT70 | 1000pcs |
| 1224210 | SCHÜCO CORONA CT70 flex | 1000pcs |
| 1224220 | SCHÜCO CORONA CT70 smart | 1000pcs |
| 1224310 | SCHÜCO CORONA CT70 frame flex | 1000pcs |
| 1224400 | SCHÜCO CORONA SI82/CAVA | 1000pcs |
| 1224500 | SCHÜCO CORONA SI82/CAVA frame | 1000pcs |
| 1224605 | SCHÜCO LIVING | 500pcs |
| 1224610 | SCHÜCO LIVING | 1000pcs |
| 1224635 | SCHÜCO LIVING frame | 500pcs |
| 1224620 | SCHÜCO LIVING RED | 1000pcs |
| 1224645 | SCHÜCO LIVING X-line | 500pcs |
| 1226200 | SPECTUS TK 71 flex | 1000pcs |
| 1226100 | SPECTUS TK 61 flex | 1000pcs |
| 1232405 | TROCAL/KÖMMERLING/KBE 76 frame | 500pcs |
| 1232310 | TROCAL/KÖMMERLING/KBE 76 RED | 1000pcs |
| 1232235 | TROCAL/KÖMMERLING/KBE 76 X-line | 500pcs |
| 1217205 | TROCAL/KÖMMERLING/KBE 88 | 500pcs |
| 1217105 | TROCAL/KÖMMERLING/KBE 88 RED | 500pcs |
| 1217305 | TROCAL/KÖMMERLING/KBE 88 frame | 500pcs |
| 1227100 | TROCAL INNONOVA | 1000pcs |
| 1227110 | TROCAL INNONOVA flex | 1000pcs |
| 1228105 | VEKA AL rama | 500pcs |
| 1228200 | VEKA AL/TL/PL flex | 1000pcs |
| 1228215 | VEKA AL/TL/PL smart | 500pcs |
| 1228300 | VEKA TL/PL | 1000pcs |
| 1228320 | VEKA TL/PL +3mm | 500pcs |
| 1228400 | VEKA SL/EL | 1000pcs |
| 1228710 | VEKA SL76 | 1000pcs |
| 1228725 | VEKA SL76 X-line | 500pcs |
| 1228735 | VEKA SL76 frame | 500pcs |
| 1228500 | VEKA SL82 | 1000pcs |
| 1228525 | VEKA SL82 smart | 500pcs |
| 1228515 | VEKA SL82 +5mm | 500pcs |
| 1228605 | VEKA SL82 frame | 500pcs |
| 1228601 | VEKA SL82 frame | 100pcs |
| 1230100 | WITAL 70 +3mm | 1000pcs |
| 1230400 | WITAL 80 sash | 1000pcs |
| 1230300 | WITAL 86 | 1000pcs |
